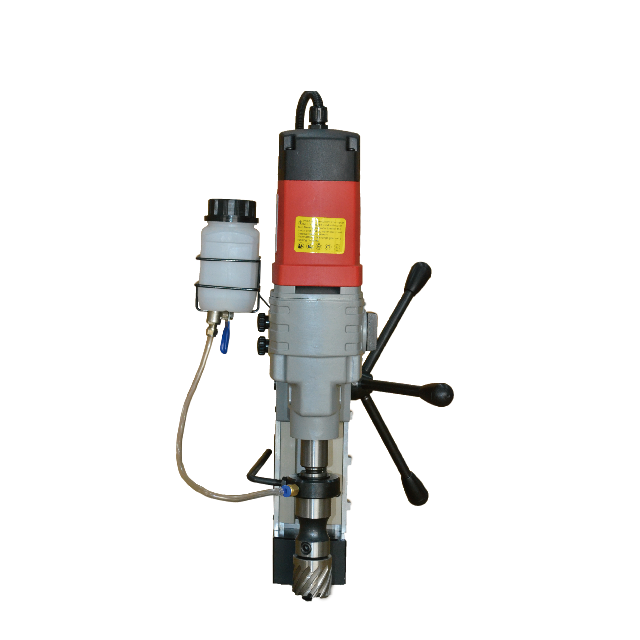

      Magnetic Core Drill
      Double dovetail groove, long stroke, small size
      All die-cast magnesium alloy frame in light weight
      Built-in cooling system, small size
      Strong drilling capacity and high efficiency
      TECHNICAL PARAMETER
      		 Core drill dia(mm) Rated Voltage(v) Rated Frequency(Hz) Rated Input Power(w) Max attraction(N)
      		 No-load Speed(rpm) Cutting depth(mm)
      		 Stroke(mm)
      		 Net/Gross Weight(kgs) Packing Weight(cm)
      KGF-435 35
      		 110/220~ 50-60 1580
      		 14000
      		 920 35
      		 120
      		 12/15 51*18*38
      KGF-545 45
      		 110/220~ 50-60 1700 15000
      		 760 35
      		 130
      		 13/16 51*18*38
