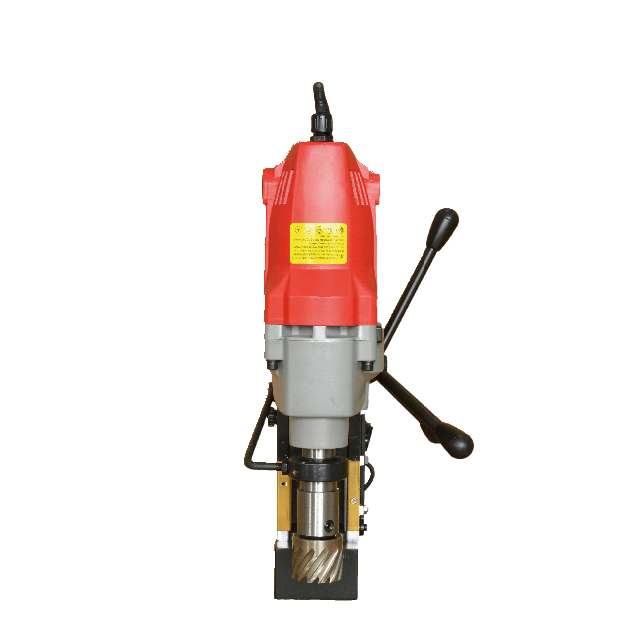

    Magnetic Core Drill
    Hosts gearbox fixed with high accuracy
    All die-cast magnesium alloy frame in light weight
    Built-in cooling system
    High magnet force
    TECHNICAL PARAMETER
    		 Core drill dia(mm) Rated Voltage(v) Rated Frequency(Hz) Rated Input Power(w) Max attraction(N)
    		 No-load Speed(rpm) Cutting depth(mm)
    		 Stroke(mm)
    		 Net/Gross Weight(kgs) Packing Weight(cm)
    OB-5000 50
    		 110/220~ 50-60 1650
    		 15500
    		 570 40
    		 190
    		 10.25/15 44.5*16.5*34.5
    OB-5000E 50
    		 110/220~ 50-60 1650 15500
    		 100-570 40
    		 190
    		 10.25/15 44.5*16.5*34.5
    OB-8000
    		 80
    		 110/220~
    		 50-60
    		 1950
    		 16700
    		 510
    		 40 220
    		 18/20
    		 44.5*16.5*34.5
    OB-8000E
    		 80
    		 110/220~
    		 50-60
    		 1950
    		 16700
    		 100-510
    		 40 220
    		 18/20
    		 44.5*16.5*34.5
